Metal Door Frames Wall Application Chart
Masonry Wall	Airated Concrete	Title/Pre Fabricated Wall
Brick Block Stone	Hebel/AAC	Concrete
90 mm Masonry	90 mm Airated	90 mm Concrete
100 mm Masonry	100 mm Airated	100 mm Concrete
110 mm Brick wall	110 mm Airated	110 mm Concrete
230 mm End wall	230 mm Airated	230 mm Concrete
120 mm Masonry	120 mm Airated	120 mm Concrete
140 mm Masonry	140 mm Airated	140 mm Concrete
150 mm Masonry	150 mm Airated	150 mm Concrete
190 mm Masonry	190 mm Airated	190 mm Concrete

PROFILES LEGEND

N - Non-rated mini door frame with 41mm rebate and 15mm stop to suit 35 - 38 mm thickness hollow/solid core doors. NM - Non-rated maxi door frame with 47mm rebate and 15mm stop to suit 40 - 42 mm thickness hollow/solid core doors. </9>

Standard Reveal Sizes

The standard reveal sizes available are as follows:

Height	2055 mm and 2065 mm
Width	Singles	Doubles
	624 mm	1246 mm
	724 mm	1446 mm
	774 mm	1546 mm
	824 mm	1646 mm
	874 mm
	924 mm

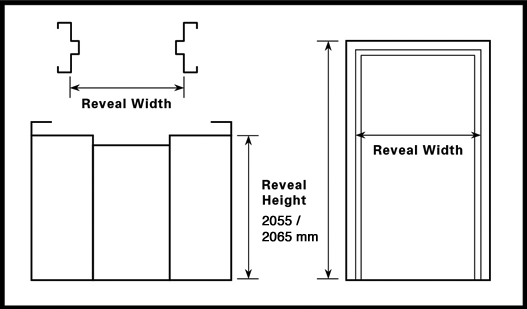

Reveal Visual Reference

Non-rated Metal Door Fames Handing

Fire Rated

Fire Rated Metal Door Frame Application for Masonry/Concrete Walls

Profiles and Applications

The following standard profiles are available for masonry Fire rated door frames:

Fire-rated profiles

PRO-FX
PRO-F114
PRO-F145
PRO-F152
PRO-F194

PRO-FMX
PRO-FM114
PRO-FM145

Fire rated double door frames are only for 45-47 mm doors, therefore 51 mm rebate is required. Pro Industries Fire rated metal door frames are manufactured to AS1905.1 2005. All fire rated metal door frames need to be backfilled.

Pro industries Wall Application Chart
Masonry Wall	Airated Concrete	Title/Pre Fabricated Wall
Brick Block Stone	Hebel/AAC	Concrete
110 mm Brick wall	110 mm Airated	110 mm Concrete
140 mm Masonry	140 mm Airated	140 mm Concrete
150 mm Masonry	150 mm Airated	150 mm Concrete
190 mm Masonry	190 mm Airated	190 mm Concrete
